Place of Origin:
Brand Name:
Certification:
Delivery Time:
Minimum Order Quantity:
Shenzhen, China
OEM or ZWBA
CE ROHS
2-8 working days
2

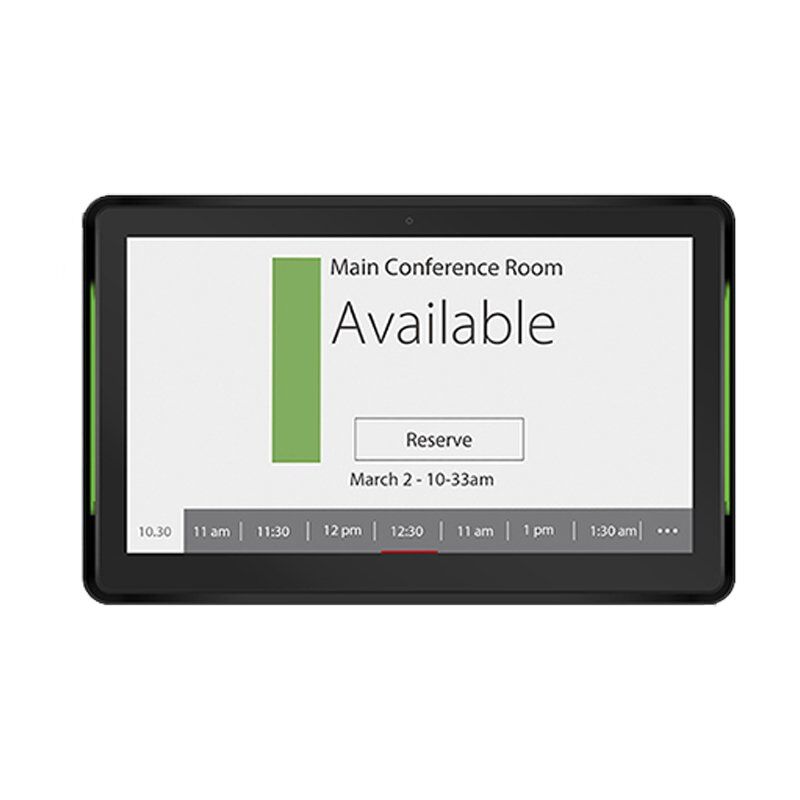

| Model: | ZWA1013T, ZWA1333T, ZWA1563T |
|---|---|
| Screen Size: | 10.1 inch, 13.3 inch, 15.6 inch |
| Configuration: | 2G+16G |
| CPU: | RK3288 |
| colour: | black, White |
Contacts：Adeline
Tel:+86 -17765298109
Fax:+86-755-28193671
| System | CPU | RK3399,Dual-core A72+quad-core A53 |
| RAM | 2GB | |
| Internal memory | 16GB | |
| Operation system | Android 7.1 | |
| Touch screen | 10-Point capacitive touch | |
| Display | Panel | 10.1″LCD panel |
| Resolution | 1280*800 | |
| Display mode | Normally black | |
| Viewing angle | 85/85/85/85(L/R/U/D) | |
| Contrast ratio | 800 | |
| Luminance | 250cd/m2 | |
| Aspect Ratio | ,16:10 | |
| Network | WiFi | 802.11b/g/n |
| Ethernet | 100M/1000M ethernet | |
| Bule-tooth | Blue-tooth 4.0 | |

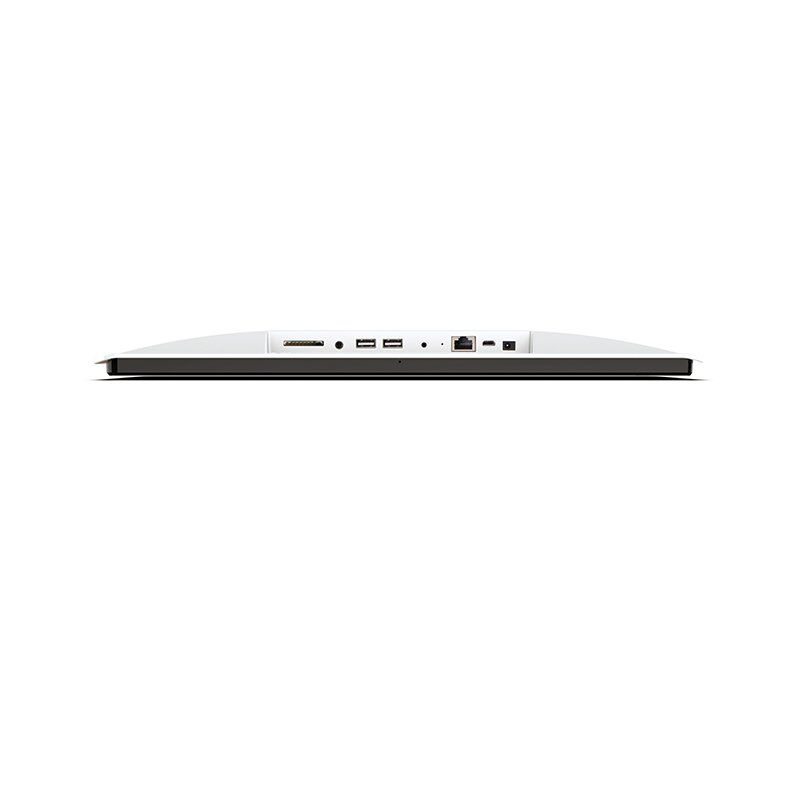

| Interface | Card slot | SD card |
| USB | USB 3.0 host | |
| Micro USB | Micro USB OTG | |
| USB | USB for serial(RS232 format) | |
| RJ45 | Ethernet interface ( POE function optional IEEE802.3at,POE+,class 4, 25.5W ) | |
| Power jack | DC power input | |
| Earphone | 3.5mm earphone + Microphone | |
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.,support up to 4K |
| Audio format | MP3/WMA/AAC etc. | |
| Photo | jpeg | |

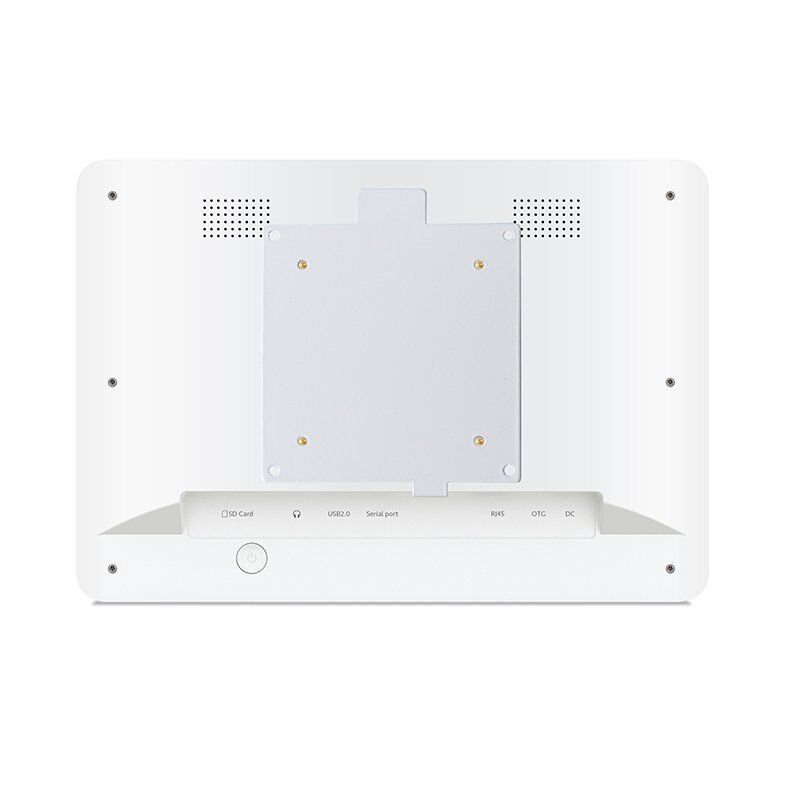

| Other | VESA | 75x75mm |
| Micphone | yes | |
| Speaker | 2*2W | |
| LED Light bar | LED Light bar,RGB | |
| NFC | Optional ,NFC 13.56MHz,ISO14443A/ISO14443B/ISO 15693/Mifare classic/ felica | |
| Camera | Front camera 2.0M/P | |
| Working temp | 0–40degree | |
| Certificates | ||
| Language | Multi-language | |
| Accessories | Adapter | Adapter,12V/1.5A |
| User manual | yes |
